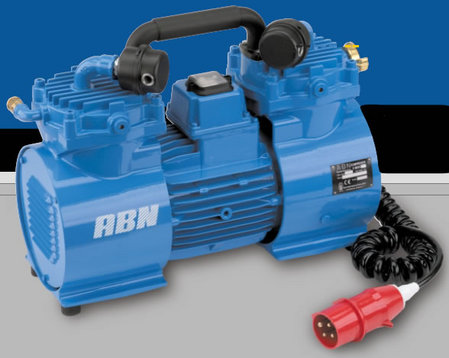

MEKO 230/280

• The motor is a non-enclosed, forced-air-cooled electric motor with 2 impeller wheels. It sees to its own essential cooling and therefore has a far longer life. The diaphragms are cooled simultaneously and withstand the loads longer.

• The housing is equipped with 2 foot rails on each side of the compressor, providing you with unrivalled flexibility for installation purposes. For example, the MEKO 230/280 can be installed without difficulty in any plastering machine.
• Concave rubber buffers, are not simply inserted in position but also screwed in place to lend the compressor the necessary stability in the machine.
• The connection can have either a claw coupling (standard feature) or a one-hand coupling (optional without extra charge), whichever the customer prefers.
• A sound-damping metal fine dust filter, featuring a pyramid arrangement of filter segments that increases the cleaning area by a multiple, supplies the MEKO 230/280 with the necessary clean air.
• Three connecting points per compressor head make the MEKO 230/280 unique when it comes to the variability of connections. No matter where the compressor is used, the connections are always in a practical position to reach.
• Easy-to-clean and maintenance-friendly thanks to a compact design.

• Oil-free air, hence no oil-related soiling of plasters and paints when they are applied. Damage which otherwise may not become visible until years later is prevented from the outset.

Special voltages possible !
