R-MEKO

Oil-free – Mobile – Powerful

For higher air capacities: the R-MEKO compressed air professionals

from ABN

For higher air capacities: the R-MEKO compressed air professionals from ABN

ABN R-MEKOs are the "work horses" among diaphragm compressors. With an operating pressure of 6 bar and a suction capacity of up to 1440 l/min they compare well with any piston compressor when it comes to the ratio of air capacity to compactness, mobility and weight. The R-MEKO consists of two V-MEKO compressor units and a central motor. It is mounted on a strong, rugged trolley – with or without a buffer tank – and has such a compact design that an estate car is usually big enough for transportation. This model has a suction capacity of up to 720 l/min. A model with two R-MEKO units is also available with a maximum suction capacity of 1440 l/min.

Many benefits – one machine:

R-MEKOs are based on the successful ABN V-MEKOs and come with all the benefits associated with these machines, for example: Clean, oil-free compressed air, extremely long life, practically no maintenance, suitable for continuous duty (100% OLF*), designed for use on building sites, environmentally friendly, reliable and operationally safe.
High air capacity yet compact design. Ideal for mobile duty on building sites and directly at the point of need.
Transportation by estate car is possible.

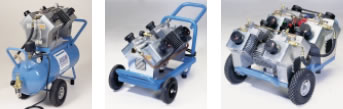

The R-MEKO 600 or R-MEKO 720
with a basic trolley and hard rubber wheels

* OLF = on-load factor

Mobile compressor
center with the
R-MEKO 720 on a
60 l tank

The MT model with
a reinforced frame, hinged handle,hard
rubber wheels, fine
dust filter and GEKA
coupling

R-MEKO 1440

Effective delivery volumes V-Meko & R-Meko

data sheet

Techncal data

Max. pressure

Suction rate

AC 3-phase AC

Motor rating

Weight

Tank

R-MEKO 500/60W

6 bar

500 l/Min.

—

2,2 kW

60 l

R-MEKO 600/W-A

6 bar

600 l/Min.

—

2,2 kW

43-53 kg

—

R-MEKO 720/D-A

6 bar

720 l/Min.

—

2,2 kW

43-52 kg

—

R-MEKO 600/W-MIC-MT

6 bar

600 l/Min.

—

2,2 kW

57 kg

—

R-MEKO 600/D-MIC-MT

6 bar

600 l/Min.

—

2,2 kW

57 kg

—

R-MEKO 600/W-F-MIC-MT

6 bar

600 l/Min.

—

2,2 kW

57 kg

—

R-MEKO 720/D-MIC-MT

6 bar

720 l/Min.

—

2,2 kW

57 kg

—

R-MEKO 720/D-F-MIC-MT

6 bar

720 l/Min.

—

2,2 kW

57 kg

—

R-MEKO 600/10-W

6 bar

600 l/Min.

—

2,2 kW

68 kg

2 x 5 l

R-MEKO 720/10-D

6 bar

720 l/Min.

—

2,2 kW

68 kg

2 x 5 l

R-MEKO 720/60-W

6 bar

720 l/Min.

—

2,2 kW

84 kg

60 l

R-MEKO 720/60-D

6 bar

720 l/Min.

—

2,2 kW

84 kg

60 l

R-MEKO 1000/D-MT

6 bar

1000 l/Min.

—

2 x 2,2 kW

90 kg

—

R-MEKO 1200/W-MT

6 bar

1200 l/Min.

—

2 x 2,2 kW

90 kg

—

R-MEKO 1440/D-MT

6 bar

1440 l/Min.

—

2 x 2,2 kW

90 kg

—

Special voltages possible !

SPRAYING

A uniform pressure profile is essential to obtain uniform spraying results. MEKOs guarantee air of unchanging constancy.

COATING

For the uniform application of all coarsegrained plasters and similar materials we recommend the ABN funnel spray gun for unique results.

LACQUERING

Our MEKO series is characterized by the most constant air rates and unchanging pressure. Pressure drops are a thing of the past.

FLOCKING

The performance characteristics of the V-MEKO are perfectly tuned for applying textile plasters with a funnel spray gun.

PLASTERING

With their unique operational safety, reliability and high effective air rates, ABN MEKOs are ideal for the operation of plastering machines. They can be used as integrated or mobile machines.

BREATCHING AIR SUPPLY

In our range of special models we offer customized ABN MEKOs designed to supply breathing air in compliance with DIN 3188.

PNEUMATIC CONTROL

Sensitive control systems need air rates of reliable constancy. MEKOs meet these requirements without difficulty.

WATER TREATMENT

Oxygen is important for the treatment of fresh water. We supply the necessary technology in our diaphragm compressors. Reliable, flexible and designed for continuous duty.

Legend

MDR	- automatic switch-off device
RW	- condenser prodection
MIC	- fine dust filter and sound-damping
A	- basic trolley
MT	- reinforced trolley
F	- filter pressure reducer
PMF	- phase reversing switch
