VACUUM-MEKOOil-free, clean, economical and powerfulVacuum-MEKOsfrom ABN VACUUM-MEKOs are diaphragm vacuum pumps with numerous advantages and high flexibility of use. Thanks to the diaphragm technology, VACUUM MEKOs work without oil and are particularly clean and economical. These portable machines are compact and maintenance-free. Their ruggedness and long life are proverbial – typical of the top quality associated with ABN. And the maturity and reliability of their design make them predestined for installation in closed vacuum systems. Standard features of VACUUM MEKOs:
Vacuum units based on diaphragm technology,
3-phase AC motor (400 V 3~50Hz) or AC motor (230 V 1~50 Hz), on/off switch, output sound-damper, R1/2" A connection thread, overcurrent circuit-breaker, ready for operation with 3-m cable and plug. | Legend | MDR | - automatic switch-off device | | RW | - condenser prodection | | MIC | - fine dust filter and sound-damping | | A | - basic trolley | | MT | - reinforced trolley | | F | - filter pressure reducer | | PMF | - phase reversing switch | Many benefits – one machine: | | | | Vacuum MEKOs for use in measuring systems and laboratory equipment | | |
-
Oil-free, hence no oil changes, no disposal of old oil and no compulsory inspections in connection with oil change intervals -
Compact and mobile, which in practice makes it easier and more convenient to transport the units and simpler to install them in machines and plants -
Powerful, with a vacuum of up to 90 torr and a suction capacity of 520 l/min -
Rugged, reliable and operationally safe, no rubbing parts, minimum wear -
Long life, very little maintenance -
Suitable for continuous duty – 100% OLF* – and service-proven in non-stop operation -
Special models for the food industry, water treatment or laboratory use
|

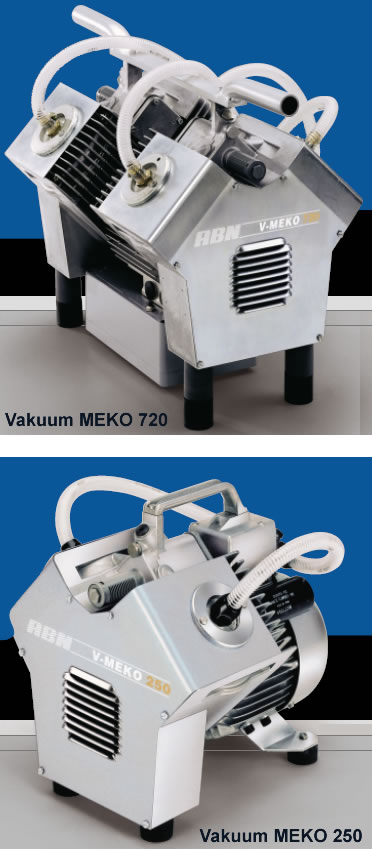

| Technical date | Suction capacity | Max. vacuum | Dimensions(LxWxH) | Weight | Electrical values | | Vakuum-MEKO 250 | 190 l/Min. | 89 % | 90 Torr | 120,00 mbar | 430 x 340 x 370 mm | 24 kg | 1,1 kW 230 V/50 Hz
oder 400 V/50 Hz | | Vakuum-MEKO 300 | 230 l/Min. | 89 % | 90 Torr | 120,00 mbar | 430 x 340 x 370 mm | 24 kg | 1,1 kW 230 V/50 Hz
oder 400 V/50 Hz | | Vakuum-MEKO 400 | 260 l/Min. | 89 % | 90 Torr | 120,00 mbar | 430 x 340 x 370 mm | 24 kg | 1,1 kW 230 V/50 Hz
oder 400 V/50 Hz | | Vakuum-MEKO 500 | 370 l/Min. | 87 % | 100 Torr | 133,30 mbar | 640 x 340 x 440 mm | 42 kg | 2,2 kW 230 V/50 Hz
oder 400 V/50 Hz | | Vakuum-MEKO 600 | 460 l/Min. | 87 % | 100 Torr | 133,30 mbar | 640 x 340 x 440 mm | 42 kg | 2,2 kW 230 V/50 Hz
oder 400 V/50 Hz | | Vakuum-MEKO 720 | 520 l/Min. | 87 % | 100 Torr | 133,30 mbar | 640 x 340 x 440 mm | 42 kg | 2,2 kW 230 V/50 Hz
oder 400 V/50 Hz | | Special voltages possible ! | Areals of application: | VACUUM-MEKO | -
Measuring systems and laboratory equiment -
Vacuum drying systems -
Vacuum lifting and handling equipment -
Drill stands -
Material holders on machining units -
Graphic industry and printing -
Plastics processing -
Food industry -
Water treatment -
Vacuum clamping systems |
| | |
